Change your cassette in 6 steps

When you start doing your own bike maintenance and repairs, replacing a worn cassette is one of the first jobs that’s a bit more difficult and that you would normally have done by a bike mechanic. Replacing a chain is so easy that we’ll skip that one. Where you used to need a chain whip (that tool with a small piece of chain attached) to change a cassette, BBB’s new T-RexGrip makes life easy!

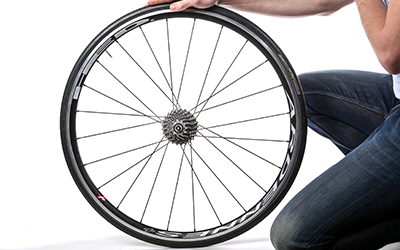

1. Remove the rear wheel

Shift into the smallest sprocket. Release the brakes and quick release to remove the rear wheel from your bike. Many bikes are still equipped with a quick release, but more and more often you’ll also see thru axles.

Remove the wheel Remove the wheel

2. Remove the Quick release

Remove the quick release from the rear wheel. Pay attention to the loose springs on the axles: check where they are located and make sure they don’t fly off. Later you’ll have to put them back in the right way.

Remove Quick release Remove Quick release

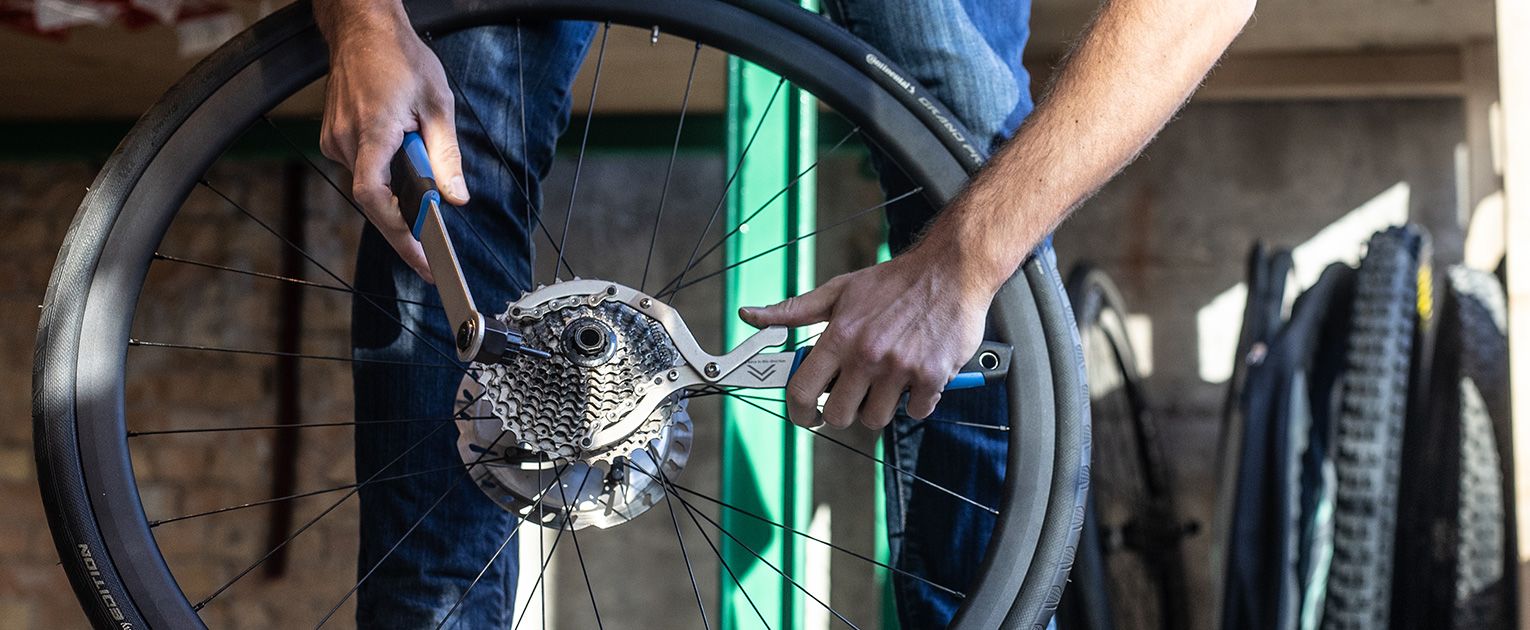

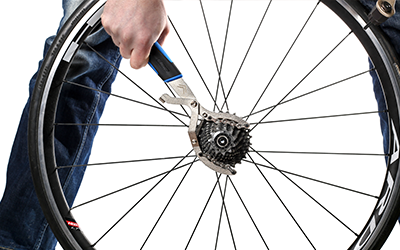

3. Placing the T-RexGrip

Place the T-RexGrip on the cassette. The tool is designed to work on all cassettes, from old 5 speed models to the very latest 12 speeds. Thanks to the shape of the jaws, the T-RexGrip always grips the cassette in the same way. Before you apply force, check that the tool is properly seated. Apply force in the direction indicated by the arrows that are etched next to the handle.

Placing the T-RexGrip Placing the T-RexGrip

T-RexGrip

Get a perfect grip on your cassette

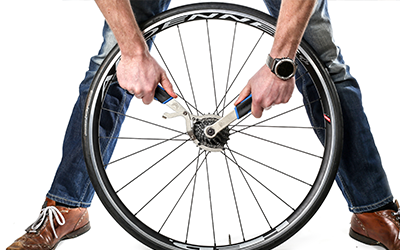

4. Loosen the lockring

The cassette is attached with a so-called lockring, which you loosen with a lockring tool. If you place the wheel in front of you on the ground, you can apply enough force to loosen the lockring with the lockring tool and the T-RexGrip in a “10 to 2” position.

Loosen the lockring Loosen the lockring

LockOut / BTL-S12

Remove cassette lock-rings of Shimano compatible cassettes

5. Remove the cassette

The cassette can now be removed. Sometimes you’ll have to apply a bit of force, because individual sprockets become somewhat stuck on the cassette body.

Remove the cassette Remove the cassette

6. Install the new cassette

Coat the cassette body and the thread of the lockring with assembly paste. Now you can install the new cassette. Please pay attention: the sprockets of the cassette only fit onto the cassette body in one way. And all of the rings in between, the so-called spacers, ensure that all sprockets are spaced evenly. To tighten the cassette, all you need is a lockring tool.

New cassette New cassette
